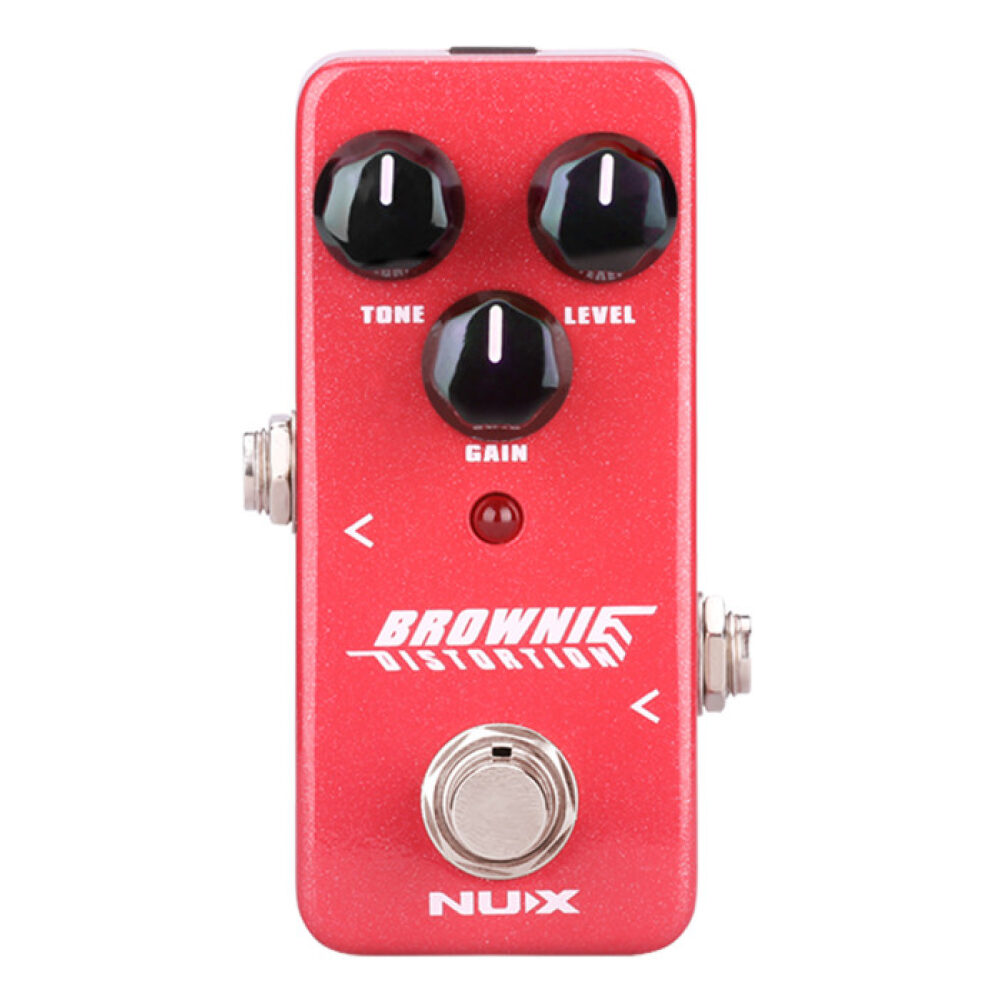

NUX NDS-2 Brownie Distortion

The NUX NDS-2 Brownie Distortion packs the classic British rock tones of the 1970s into one mini box. A hybrid circuit reproduces both preamp and power-tube distortion characteristics for a warm, organic tone.

A specially designed BJT input stage makes the pedal break up the way a preamp tube does when it starts to distort, while asymmetrical clipping adds harmonic content and keeps the low end tight. A low-pass tone filter simulates the Variac effect, rounding off the high frequencies.

• Controls: Gain, Tone, Level
• BJT input stage — asymmetrical clipping
• Power clipping circuit with low-noise op-amp and 2 red LEDs
• True bypass with mechanical footswitch
• Input impedance: 470k ohm — output: 100 ohm
• Power: 9V DC centre negative, >100mA (not included)
• Dimensions: 94 x 51 x 53 mm — Weight: 174 g
