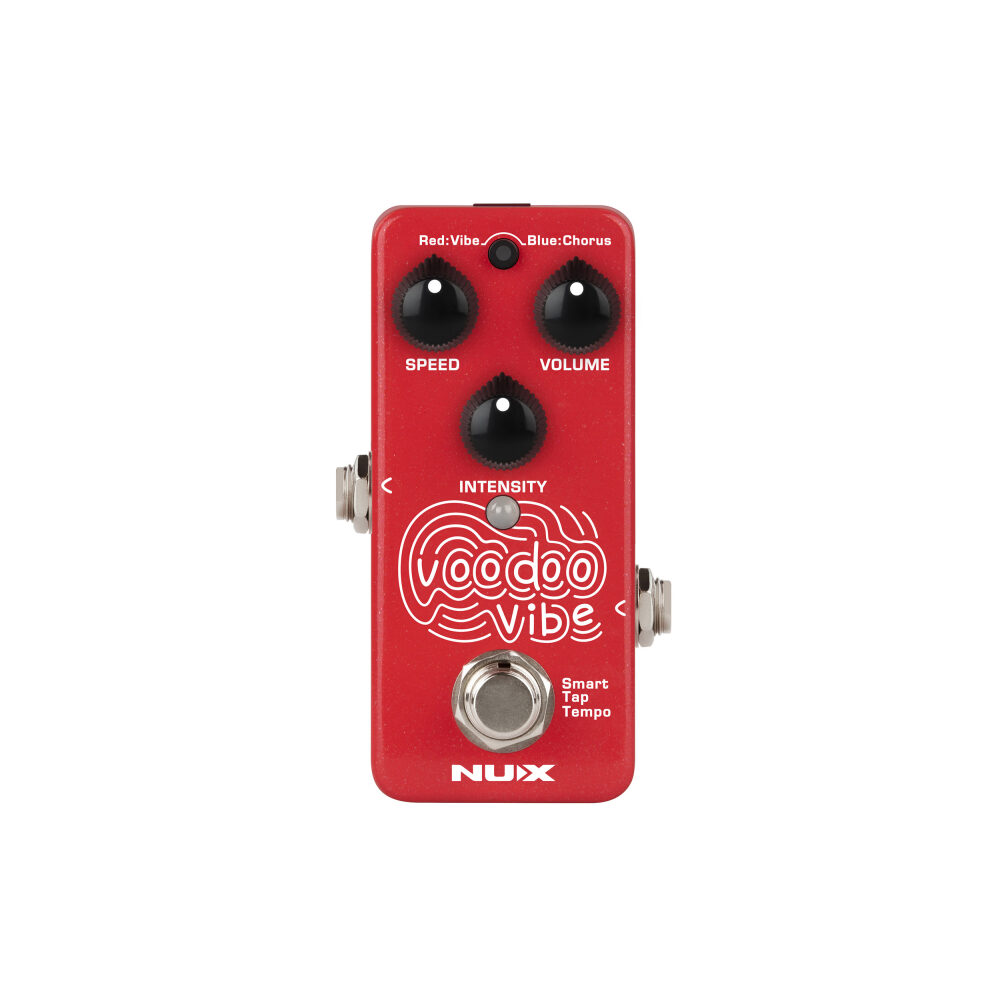

NUX NCH-3 Voodoo Vibe

The NUX NCH-3 Voodoo Vibe is a mini uni-vibe pedal with two distinct modes, Vibe and Chorus, switched by holding down the footswitch. The sound draws on classic uni-vibe circuits and the feel of a rotating speaker.

NUX’s modern DSP processing is paired with an analogue dry signal path for low noise and zero latency. Unlike the original uni-vibe units, it runs on 9V rather than 18V.

• Controls: Speed, Intensity, Volume
• 2 modes in a mini enclosure: Chorus (sweep depth) and Vibrato (pitch modulation amount)
• Smart Tap Tempo from the footswitch
• True-bypass or buffer-bypass with trails
• Stereo I/O support with a TRS cable
• Analogue dry signal for low noise and zero latency
• USB-C port for firmware updates
• Input impedance: 1 MΩ — output: 10 kΩ — Dynamic range: 103 dB
• Power: 9V DC (negative tip), current draw <100mA
• Dimensions: 94 x 51 x 53 mm — Weight: 175 g
